Description

Main Features

• Air‑driven design — no electrical connection required

• Safe for flammable or explosive environments

• Excellent corrosion, wear, and rust resistance

• True self‑priming capability (5–7 m suction lift)

• Can operate dry without damage

• Smooth, low‑pulsation flow from double‑diaphragm reciprocating action

• Compact, lightweight, and easy to relocate

• Minimal leakage risk due to simplified mechanical structure

• Energy‑efficient operation using only compressed air

• Discharged air can be recycled for reduced operating cost

Technical Data

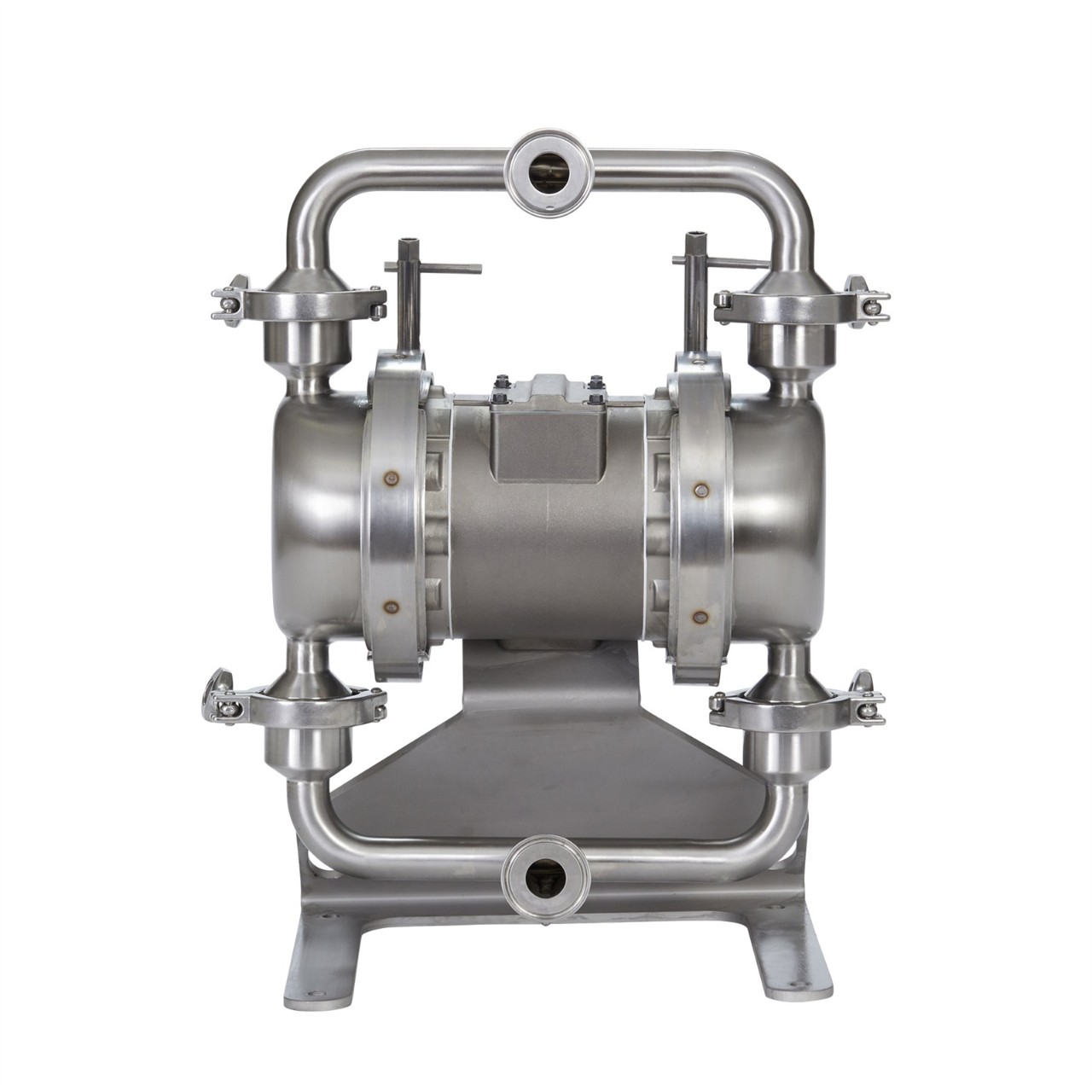

• Pump type: Pneumatic double‑diaphragm

• Power source: Compressed air (no electrical power required)

• Suction lift: 5–7 m (self‑priming)

• Wetted materials: Stainless steel

• Suitable media: Water, oils, slurries, and compatible chemical liquids

• Operation: Linear control of flow and pressure via air inlet adjustment

• Dry‑run capability: Yes

• Pulsation: Low, due to dual‑diaphragm reciprocating design

• Installation: Fixed or mobile use

• Maintenance: No motor, minimal sealing components, low leakage risk

Optional Features

• Air pressure regulator for precise flow control

• Chemical‑resistant diaphragm materials

• Mobile cart or skid‑mounted configuration

• Quick‑disconnect fittings

• Noise‑reduction muffler

• Stainless steel or PTFE diaphragm options

Warranty

12 months (limited warranty)
