Description

Main Features

• Constructed from SS304 or SS316 stainless steel
• Suitable for liquids, suspensions, and semi‑solid materials
• Efficient mixing performance for a wide range of applications
• Simple operation and low maintenance requirements
• Smooth internal surfaces for easy cleaning
• Compatible with various impeller types depending on process needs
• Stable, corrosion‑resistant structure for long service life
• Available in multiple capacities and configurations

Technical Data

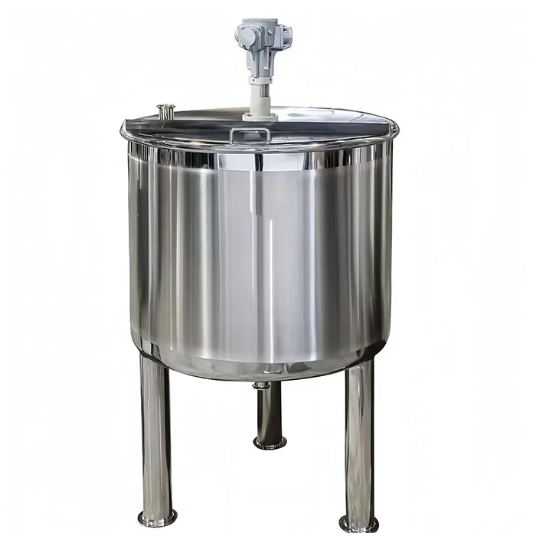

• Tank type: Single‑wall stainless steel mixing vessel
• Material options: SS304 or SS316
• Application range: Solvents, slurries, suspensions, coatings, inks, food ingredients, lab batches
• Operating conditions: Ambient‑temperature mixing
• Cleaning: Manual washdown; CIP compatible depending on configuration
• Agitation: Motor‑driven mixer with adjustable speed (varies by model)
• Typical uses: Blending, dilution, dispersion, sample preparation, and general mixing tasks

Optional Features

• Custom impeller designs (propeller, anchor, paddle, turbine)
• Variable‑speed drive (VFD)
• Sanitary fittings and tri‑clamp connections
• Load cells for batch‑weight monitoring
• Sight glass, sampling port, or lighting port
• Mobile base with locking casters
• Upgraded seals and gaskets for demanding applications

Warranty

12 months (limited warranty)

Single Layer vs. Double Layer Mixing Tanks — Selection Guide

When to Choose a Single Layer Tank

• General mixing, dilution, or dispersion
• Coatings, inks, wastewater treatment, and room‑temperature processes
• Budget‑sensitive projects
• Applications not requiring heating or cooling

When to Choose a Double Layer Tank

• Processes requiring heating or cooling (steam, water, oil)
• Fermentation, crystallization, chemical reactions
• Food and pharmaceutical applications requiring sterilization
• High‑viscosity materials that benefit from temperature‑assisted mixing

Additional Considerations

• Viscosity: High‑viscosity materials may require heating (double‑layer).
• Corrosiveness: Choose appropriate stainless steel grade or lining.
• Hygiene: Double‑layer tanks often preferred for sanitary environments.
• Space: Double‑layer tanks reduce the need for external heat exchangers.
• Operating cost: Double‑layer tanks offer better thermal efficiency long‑term.
