Description

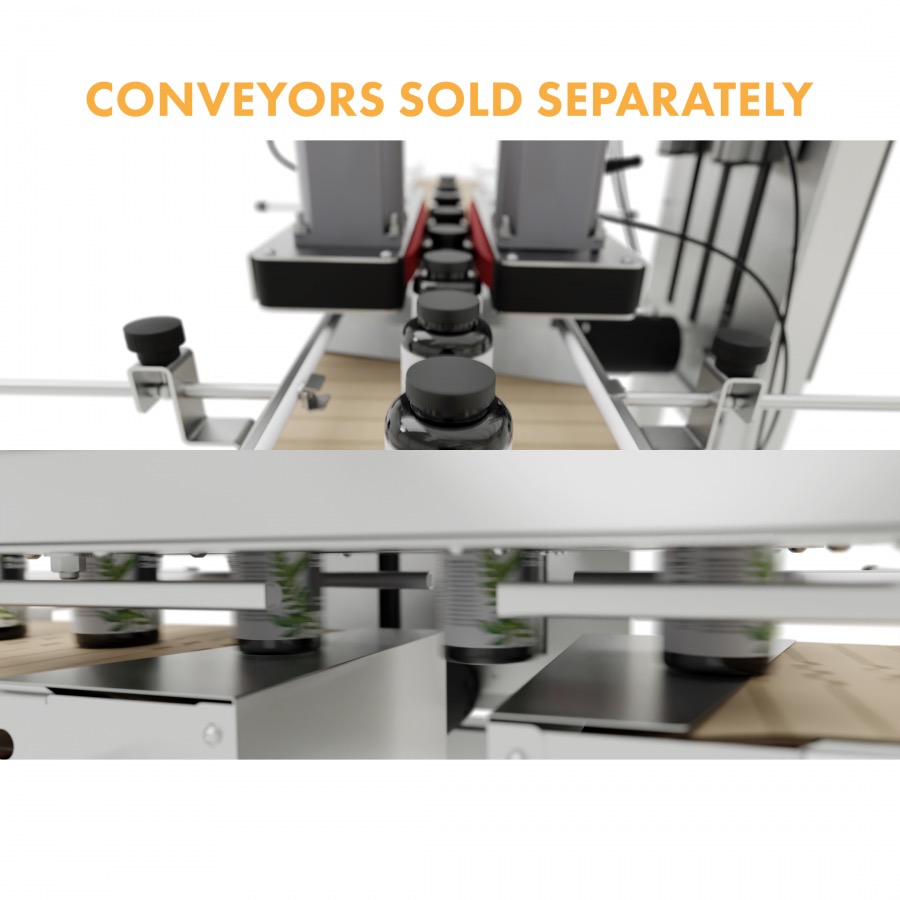

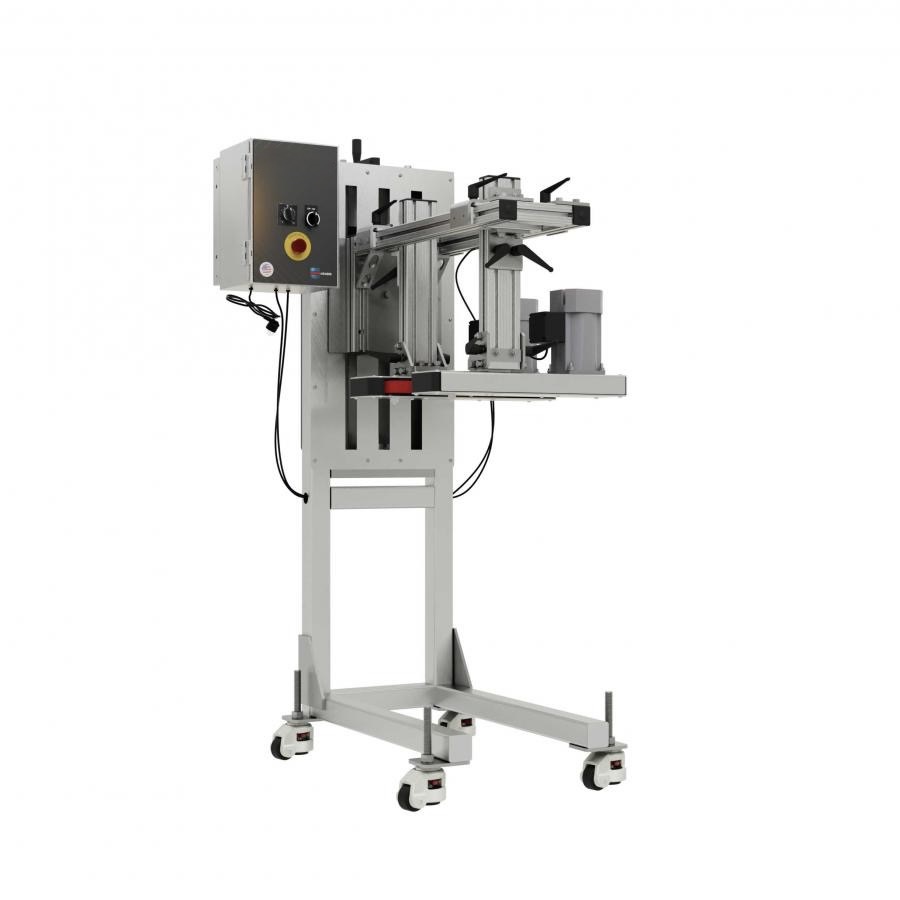

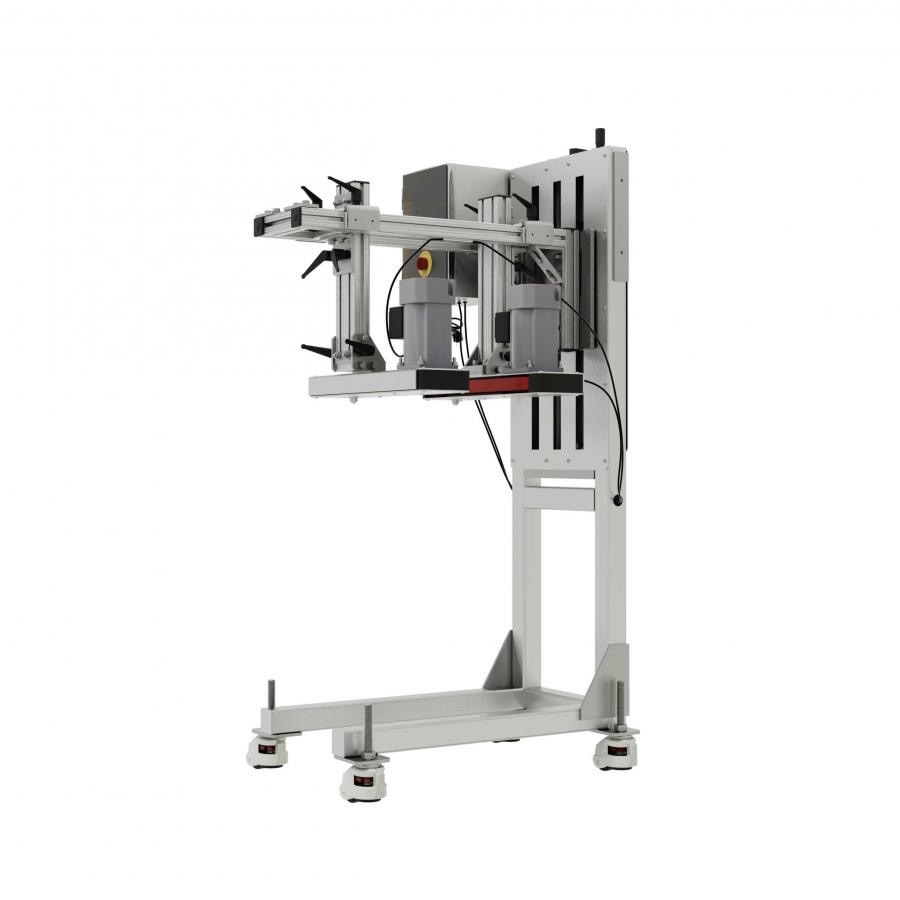

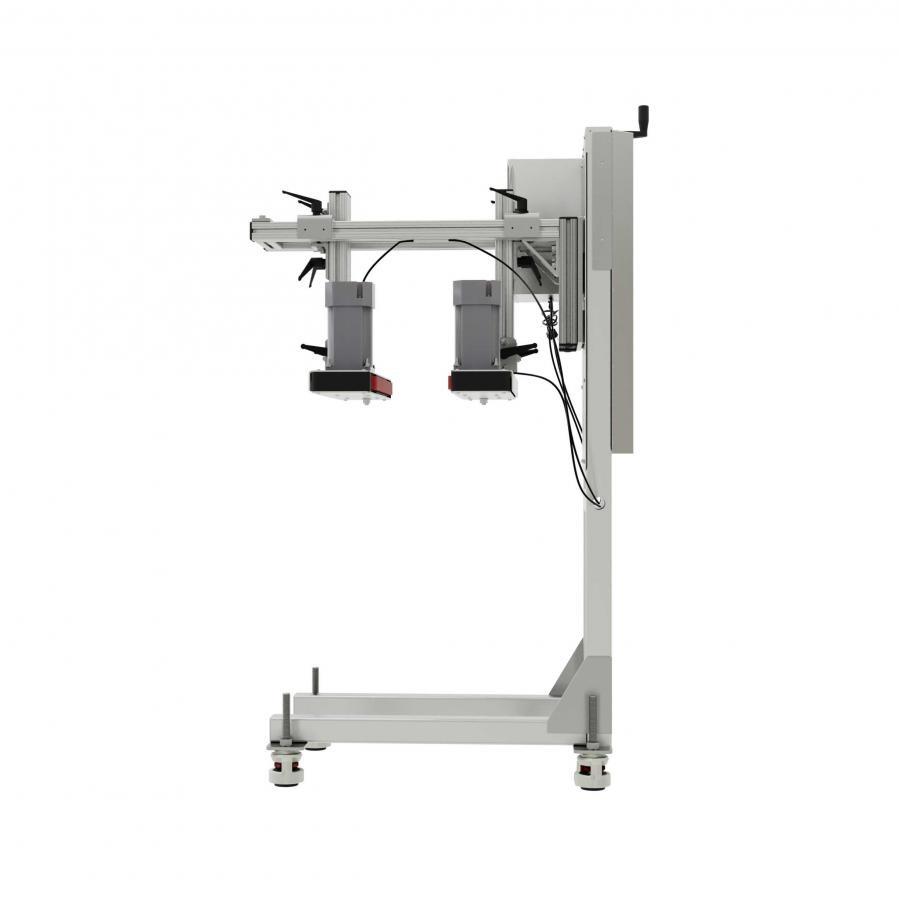

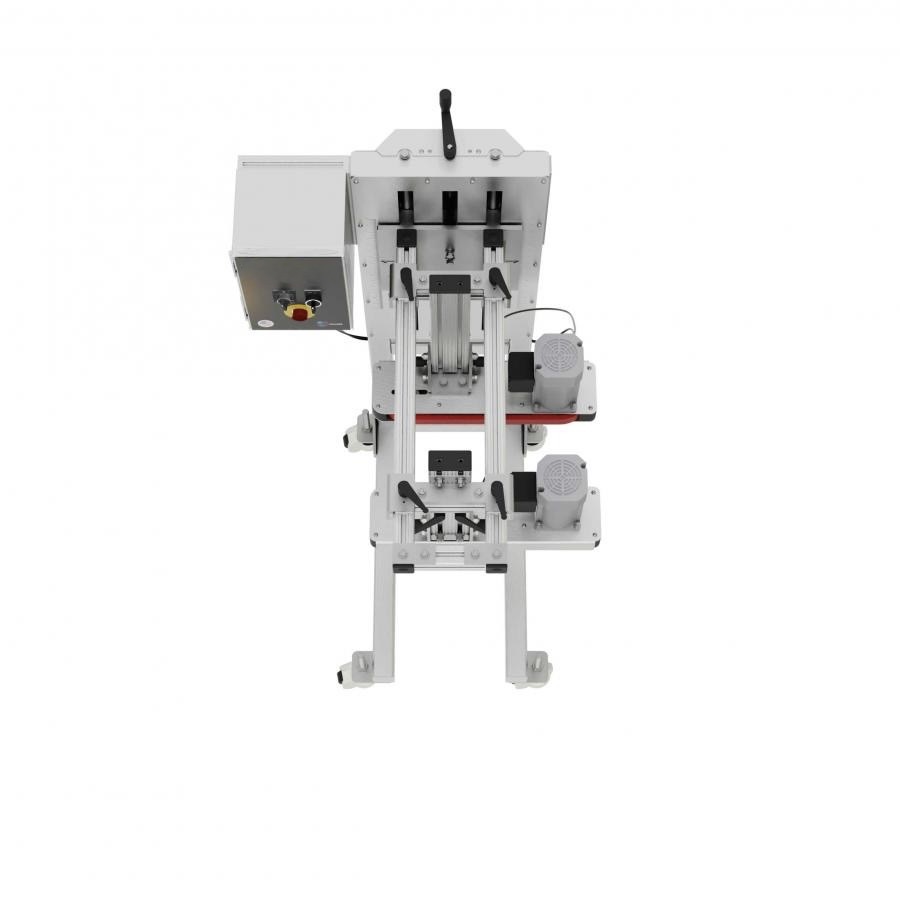

Main Description: The Gap Transfer Conveyor is designed for smooth, controlled transfers between conveyors using precision hugger belts to securely grip containers and prevent tipping. Ideal for bottom coding, label inspection, de-pucking, and product spacing. With tool-less, independently adjustable hugger belts, it accommodates containers up to 8″ in diameter and 13″ in height. Its compact C-frame design allows for easy integration into existing lines, even in tight spaces.

Main Features

• Manufactured in the USA using 100% UL-certified components
• Durable welded stainless steel and aluminum frame
• Tilting head design accommodates tapered bottles
• Height-adjustable for versatile line integration
• All adjustments include position indicators for easy recipe setup
• Emergency stop (E-stop) push button for safety
• Variable speed operation up to 80 ft/min
• Built-in pinch point protection for operator safety
• Ratchet-style locking casters

 Technical Data

• Motor: AC Brother gearmotor, 1/10 HP, 90 RPM, 74 in-lbs, 230 VAC 3PH
• VFD: Teco, Input voltage 115 PH / Output voltage 230 VAC / 3PH
• Electrical requirements: 115 V / 1 PH / 60 Hz / 5.7 Amps
• Belt width adjusts to: 0-8”
• Max container height: 13”
• Belt size: 12” L x 1” H
• Floor to belt height: Minimum:26”  Maximum: 44”

Optional Features

• Print head bracket
• Bottle sliding plate
• Washdown duty motor

Warranty

• 12 months (limited warranty)
